Through its easy to use GUI (Graphical User Interface), the user can easily design, analyze and troubleshoot rotating machinery such as: turbines, compressors, pumps, fans, electric motors, etc.

RITEC Integrated Machinery Analysis Package (RIMAP©) provides:

• The most advanced rotordynamics software around.
• State-of-the-art analysis techniques.
• Unique features.
• User friendly graphics interface.
• Special advanced capabilities.
• Complete data representation and reporting.

Program Features:

• Rotor grows during model build-up.
• Speed dependent characteristics.
• Gyroscopic Effects.
• Hydrodynamic Bearing Analysis including: Plain Journal, Two Axial Groove, Elliptic, Offset Cylinder, 3 Lobe, Pressure Dam, Partial Arc, and Tilting Pad Bearings. Also User can define bearing parameters.
• Flexible Support.
• Object Oriented Programming.
• Flexible Units.

Analysis Options include:

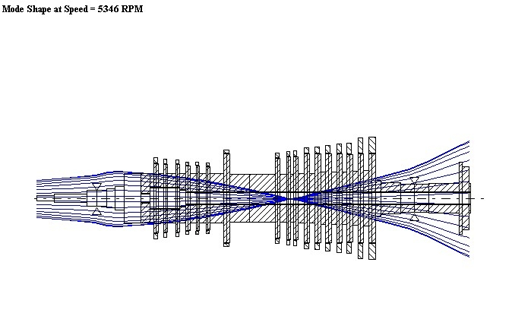

• Eigenvalue analysis, Stability Maps, Campbell Diagram, and Critical Speeds for synchronous excitation or excitation: 0.5X, 1X, 2X, 3X, 4X, or user defined 2D and 3D Mode Shapes with animation.
• Undamped Critical Speed Map, the change in critical speeds with bearing stiffness.
• Unbalance Response can be viewed either as Bode Plot or Polar Plot.
